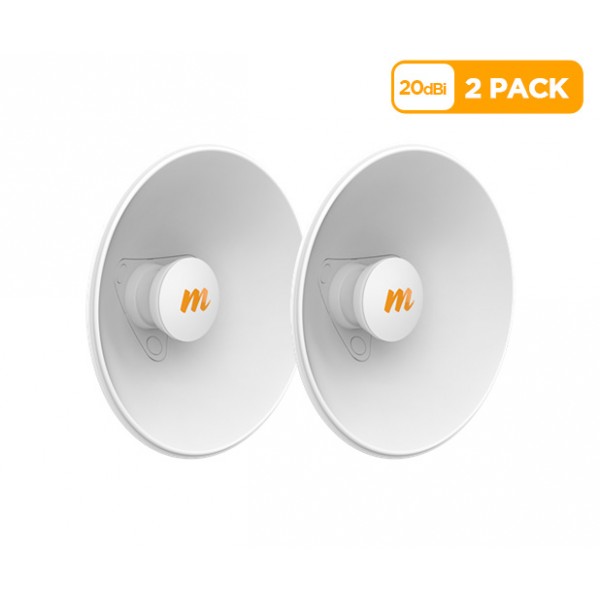

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (2 Pack) | MIM-N5-X20-2PACK

Boost Your Wireless Network Performance

Upgrade your Mimosa C5x radios with this 2-pack of high-performance N5-X20 twist-on antennas, designed to enhance your wireless link gain from the native 8dBi up to a powerful 20dBi. These modular antennas offer unmatched flexibility and reliability, perfect for long-range, high-capacity point-to-point or point-to-multipoint deployments.
Key Features

Dual Pack: Includes two identical 20dBi antennas for a complete set.

Modular Twist-On Design: Easy to install and swap antennas to meet your coverage needs with gain options from 8dBi to 25dBi.

Wide Frequency Range: Operates from 4.9 GHz to 6.4 GHz, ideal for diverse wireless environments.

Dual-Slant 45º Polarization: Improves signal robustness and reduces interference.

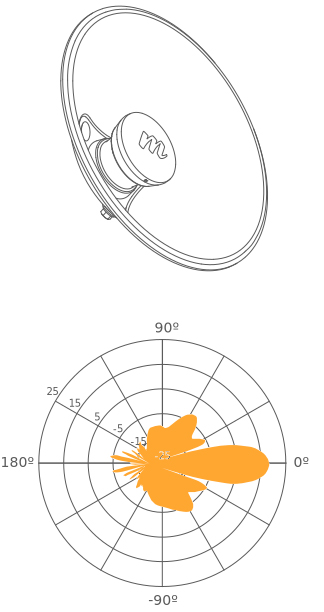

Narrow Beamwidth: 12º symmetric beam for precise directional coverage.

Superior Front-to-Back & Front-to-Side Ratios: 35 dB and 37 dB respectively, minimizing signal interference and maximizing link quality.

Rugged & Weather-Resistant: Designed to withstand winds up to 200 km/h (125 mph) and harsh outdoor conditions.

Lightweight & Compact: Weighs 0.77 kg each with a diameter of 270 mm and depth of 83 mm for easy mounting.

Technical Specifications
Specification Details
Gain 20 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º
Beamwidth (3dB) 12º Symmetric
Front-to-Back Ratio 35 dB
Front-to-Side Ratio 37 dB
Weight 0.77 kg (1.70 lbs) per antenna
Dimensions Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mounting Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading 14.55 @ 160 km/h (32.07 lbs @ 100 mph)
