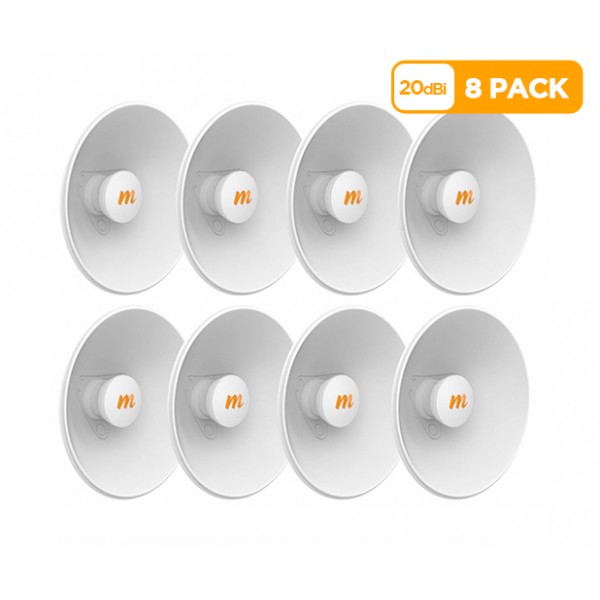

Mimosa N5-X20 twist-on 5GHz 20dBi antenna 270mm (8 Pack) | MIM-N5-X20-8PACK

Maximize Your Wireless Network with Modular Flexibility

Upgrade your wireless links with this bulk 8-pack of Mimosa N5-X20 20dBi twist-on antennas. Designed for the Mimosa C5x radio series, these modular antennas boost the native 8dBi gain up to 20dBi for extended range, stronger signals, and enhanced network reliability.
Key Benefits

Bulk Value Pack: Eight high-performance 20dBi antennas, perfect for large-scale deployments or stocking spares.
Modular Twist-On Design: Easily attach or swap antennas for customized gain options (8, 12, 16, 20, 25 dBi).
Extended Frequency Range: Works seamlessly between 4.9 GHz and 6.4 GHz for versatile use in diverse wireless environments.
Robust Dual-Slant 45º Polarization: Improves signal quality and reduces interference for stable connections.

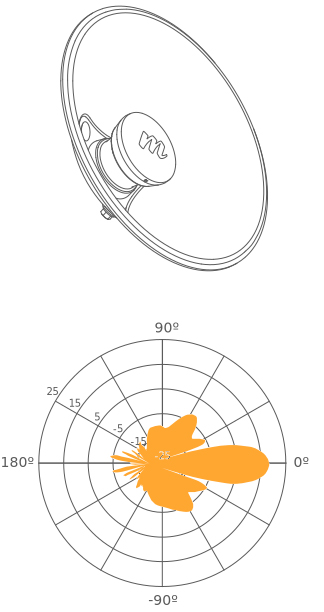

Narrow 12º Beamwidth: Offers focused, symmetrical coverage for precise targeting of wireless signals.
Superior Signal Isolation: Front-to-back ratio of 35 dB and front-to-side ratio of 37 dB reduce noise and interference.
Rugged Construction: Designed to withstand winds up to 200 km/h (125 mph) and harsh outdoor conditions.
Compact & Lightweight: Each antenna weighs just 0.77 kg and measures 270 mm in diameter, making installation and mounting straightforward.

Technical Specifications

Feature Specification
Gain 20 dBi
Frequency Range 4.9 – 6.4 GHz
Polarization Dual-Slant 45º
Beamwidth (3dB) 12º Symmetric
Front-to-Back Ratio 35 dB
Front-to-Side Ratio 37 dB
Weight 0.77 kg (1.70 lbs) per antenna
Dimensions Diameter: 270 mm (10.63”) Depth: 83 mm (3.27”)
Mount Type Mimosa N5-X twist-on
Wind Survivability 200 km/h (125 mph)
Wind Loading 14.55 @ 160 km/h (32.07 lbs @ 100 mph)

Ideal For

Wireless ISPs requiring extended-range PTP/PTMP links
Large-scale network deployments needing multiple high-gain antennas
Customers who prefer modular and flexible antenna solutions
